Suitable Materials
Nickel-based Alloys, Cobalt-chromium Alloys, Stainless Steel, Aluminum-based Alloys, Iron-based Alloys, Etc.
2020 官网升级中!现在您访问官网的浏览器设备分辨率宽度低于1280px请使用高分辨率宽度访问。

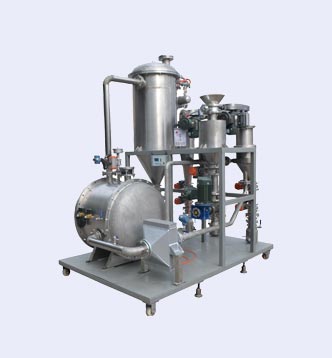

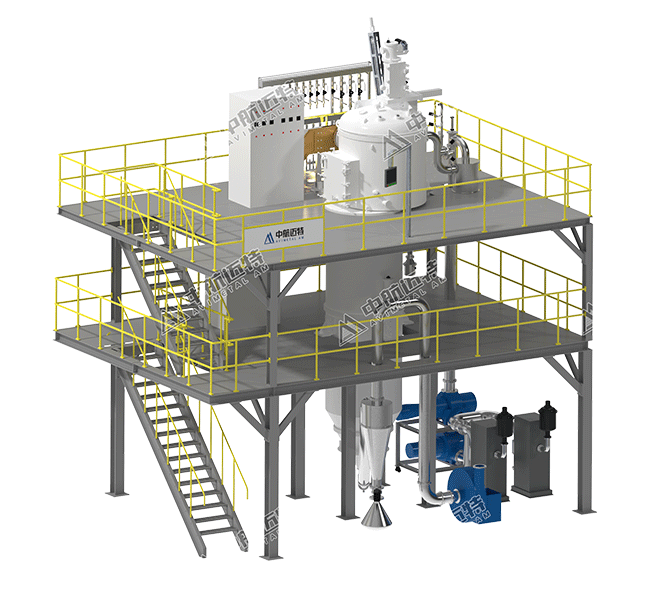

VIGA equipment has a wide range of applications, mainly for the production of high-performance iron-based, nickel-based, cobalt-based, aluminium-based, copper-based and other advanced alloy powder materials. It is widely used in aerospace, health, tooling, automobile, machinery, electronics, new energy and other fields and also suitable for additive manufacturing (3D printing), melting deposition, laser cladding, thermal spraying, powder metallurgy, hot isostatic pressing and other advanced manufacturing processes.
Nickel-based Alloys, Cobalt-chromium Alloys, Stainless Steel, Aluminum-based Alloys, Iron-based Alloys, Etc.
particle size 0~150μm, nickel-based alloy powder D50: 20~60μm
High powder yield, low oxygen content, good sphericity and excellent overall performance
Crucible Capacity
Pouring Method
Max Temperature
Temperature Measurement
Holding Temperature
Overall Power
Working Vacuum Degree
Ultimate Vacuum Degree
Pressure Rise Rate
Inert Gas
Atomizing Gas Pressure
Atomizing Gas Flow
Size Distibution
Build Size
10~500KG
Stopper Pouring for Small Furnace, Tundish Pouring for Large Furnace
≤1750℃
Mechanical and Dual Colorimetric Thermometry
1250℃
100~650KW
6.67×10-1Pa
6.67×10-3Pa
≤2Pa/h
N2 /Ar
0~6MPa，Nozzle: 8MPa
10~30Nm3/min
15~45μm, 15~53μm, 53~150μm
Depending on the type of furnace
